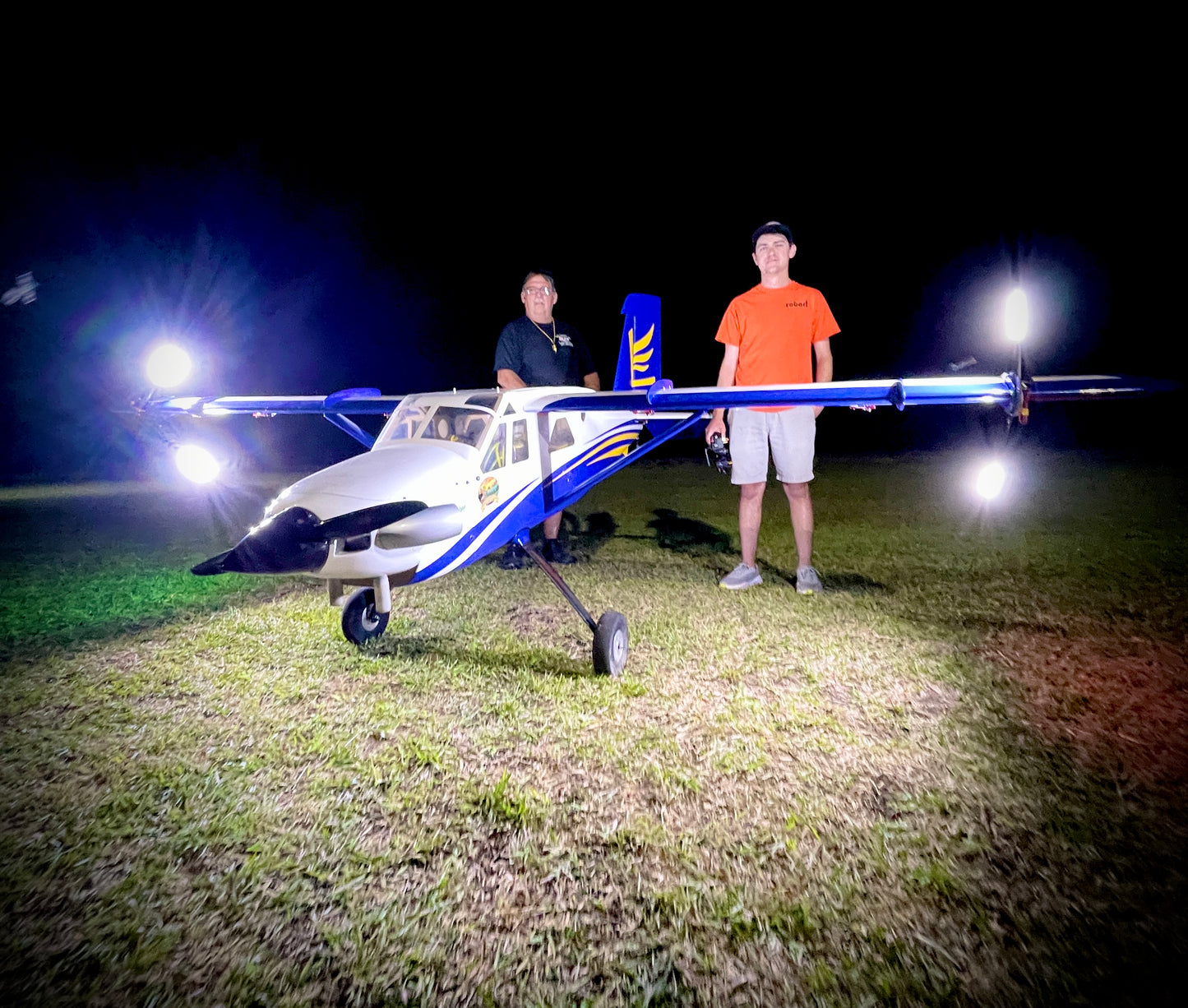

100" - 140" Bushmaster Lights!

Bushmaster Lights are shipping now!

Instructions for mounting. This kit will mount to your outermost wing fence SFG. We recommend adding extra thin ca to the mounting point where the fence meets the wing to make sure you have a strong bond there. From there you will hold the light up to the fence with the light on the wingtip side of the fence and drill (2) 3mm holes in your wing fence that line up with the holes in the light mount. Secure with included 3mm bolt and locknut. Before mounting, harden hole in SFG with thin CA.

*You may elect to use blind nuts for a more permanent / quick connect solution if clearance allows.


- This size will fit the 100" - 140" Bushmaster series.
* This kit will also fit the 84" Bushmaster (Update as of November 2024)
- Runs on 3s battery. (700mah-850mah suggested. 450mah will work for shorter flights)
- Features (4) bright white illumination LED. Same output as Nigthfire XL
- Includes green and red Nav LED's located just in front of each wing fence. (Red/Green)
